Jinda Solar Aluminum PV Bracket Accessories Functions

Every accessory of Jinda Solar’s aluminum PV brackets is engineered to work seamlessly together, designed with corrosion resistance, easy installation, and durability in mind—matching the 25+ year service life of your solar panels. Let’s explore the core accessories and their critical functions!

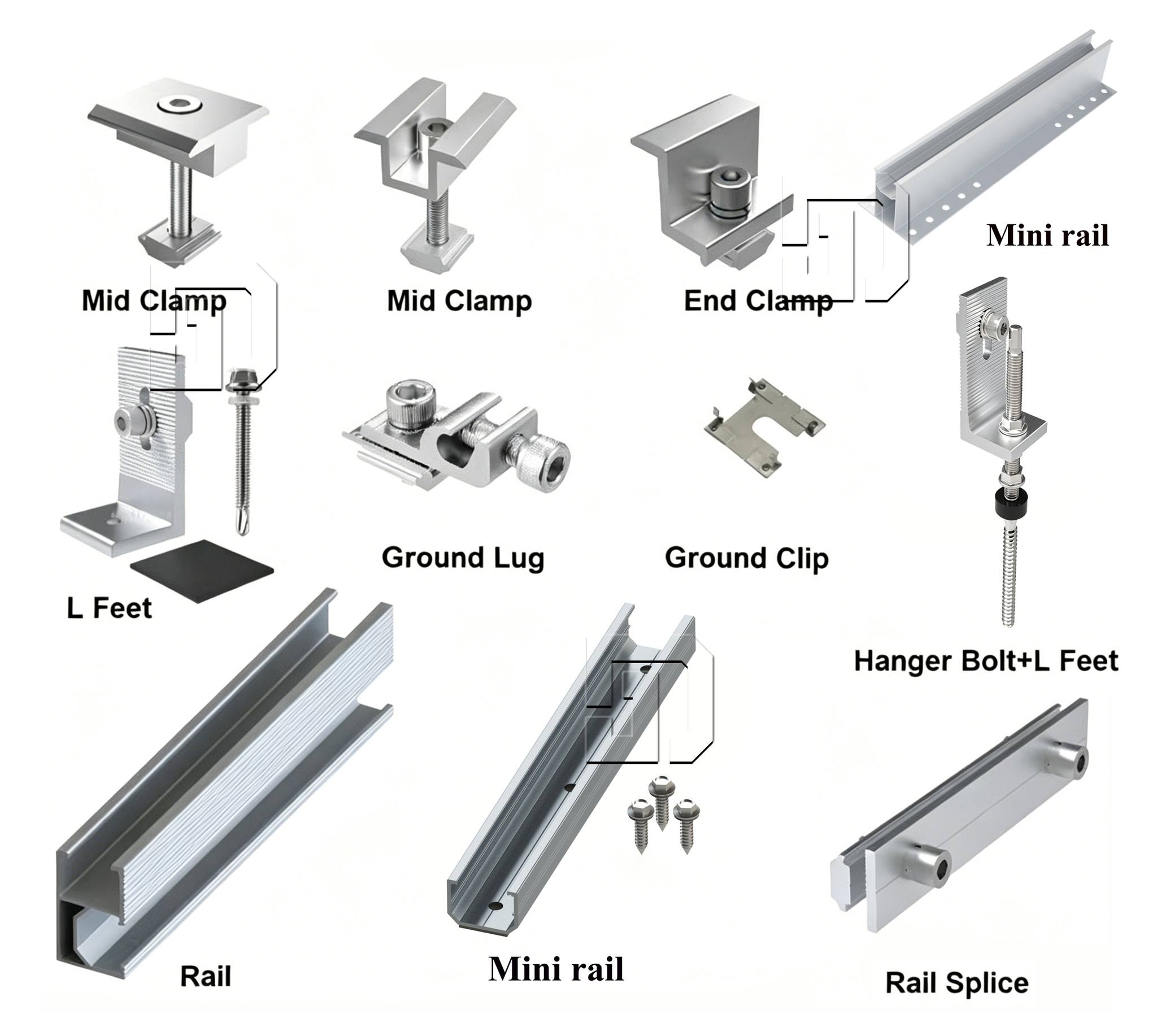

🔩 Core Accessories & Their Roles

1. Aluminum Rail (Aluminum Guide Rail) – The Backbone of the Bracket System

Key Roles:

✅ Provides a stable mounting base for solar panels and other accessories;

✅ Ensures even load distribution to avoid local stress concentration and structural damage;

✅ Pre-drilled slots for easy installation of clamps and other components, saving on-site construction time;

✅ Treated with anodizing or zinc-aluminum-magnesium coating for superior corrosion resistance, suitable for outdoor use in all climates.

2. Mid Clamp (Middle Pressure Clamp) – Secure Panel Connections

Key Roles:

✅ Fixes the middle edges of adjacent solar panels, preventing movement caused by wind or vibration;

✅ Ensures a tight, gap-free connection between panels, improving the overall stability of the system;

✅ Anti-slip gaskets protect the panel frames from scratches and enhance friction, avoiding panel displacement;

✅ Easy to install and adjust, compatible with all standard framed solar panels.

3. End Clamp (Edge Pressure Clamp) – Protect Panel Edges & Secure the Whole Array

Key Roles:

✅ Fixes the outermost edges of the solar panel array, preventing the panels from slipping or falling off;

✅ Bears lateral wind pressure and ensures the integrity of the entire array;

✅ Equipped with reinforced design to enhance stability, suitable for high-wind areas;

✅ Compatible with various panel thicknesses, with adjustable pressure to avoid damaging panel edges.

4. L-Angle (L-Bracket) – Connect & Reinforce the Structure

Key Roles:

✅ Connects aluminum rails to the roof or ground foundation, ensuring a firm connection between the bracket and the mounting surface;

✅ Reinforces the joint of the bracket system, improving overall structural stability and load-bearing capacity;

✅ Allows flexible adjustment of the bracket’s installation angle, adapting to different roof slopes and ground terrains;     ✅ Pre-drilled holes for easy installation, reducing on-site modification work.

5. Other Essential Accessories

• Fasteners (Bolts, Nuts, Washers): Made of SUS304 stainless steel, corrosion-resistant and high-strength, used to fix all components together;

• Anti-Slip Gaskets: Installed between clamps and panels, or between rails and brackets, to prevent scratches and enhance stability;

• End Caps: Cover the ends of aluminum rails, preventing dust, water, and debris from entering the rail, extending the service life.

🌟 Why Jinda Solar’s Bracket Accessories Stand Out

• All accessories are made of high-quality materials (aluminum alloy, SUS304 stainless steel) to ensure corrosion resistance and durability;

• Precision manufacturing ensures perfect compatibility between accessories and the main bracket, avoiding installation troubles;

• Customizable accessories to fit different project needs (panel size, installation scenario, climate conditions);

• Factory-direct supply, ensuring consistent quality and cost-effectiveness.

🤝 Trust Jinda Solar for Complete PV Mounting Solutions

A stable and reliable solar system depends on every small accessory. Jinda Solar provides a full set of high-quality aluminum PV bracket accessories, paired with professional technical support, to ensure your solar project runs safely and stably for 25+ years.
