Different Types of Aluminum Alloy PV Brackets & Their Application Scenarios

Location：

Find Your Perfect Bracket with Jinda Solar

2026-05-05 08:12

☀️ When it comes to solar PV mounting solutions, one size does not fit all. Every solar project has unique requirements based on its location, terrain, roof type, and energy goals.

Jinda Solar, a professional manufacturer of solar mounting systems, offers a full range of aluminum alloy PV brackets, each tailored to specific application scenarios. Today, we’ll break down the different types of Jinda Solar aluminum alloy brackets and their ideal use cases, helping you find the perfect match for your next solar project.

Aluminum alloy is the cornerstone of our mounting solutions, thanks to its lightweight, coresistant, and durable properties. Jinda Solar has optimized our aluminum brackets into four core types, each engineered to solve the unique challenges of different project scenarios from residential rooftops to large scale ground farms, and everything in between. Let’s dive in!

🔧 Type 1: Rooftop Aluminum Alloy Fixed-Tilt Brackets

Ideal Application Scenarios: Residential Rooftops, Small Commercial Rooftops

Jinda Solar’s rooftop fixed-tilt aluminum brackets are the most widely used type, designed for simplicity, reliability, and cost-effectiveness perfect for residential villas, apartment buildings, and small commercial rooftops (such as convenience stores, small offices). These brackets feature a fixed tilt angle, which is pre calculated based on the local latitude to maximize sunlight absorption and energy generation efficiency.

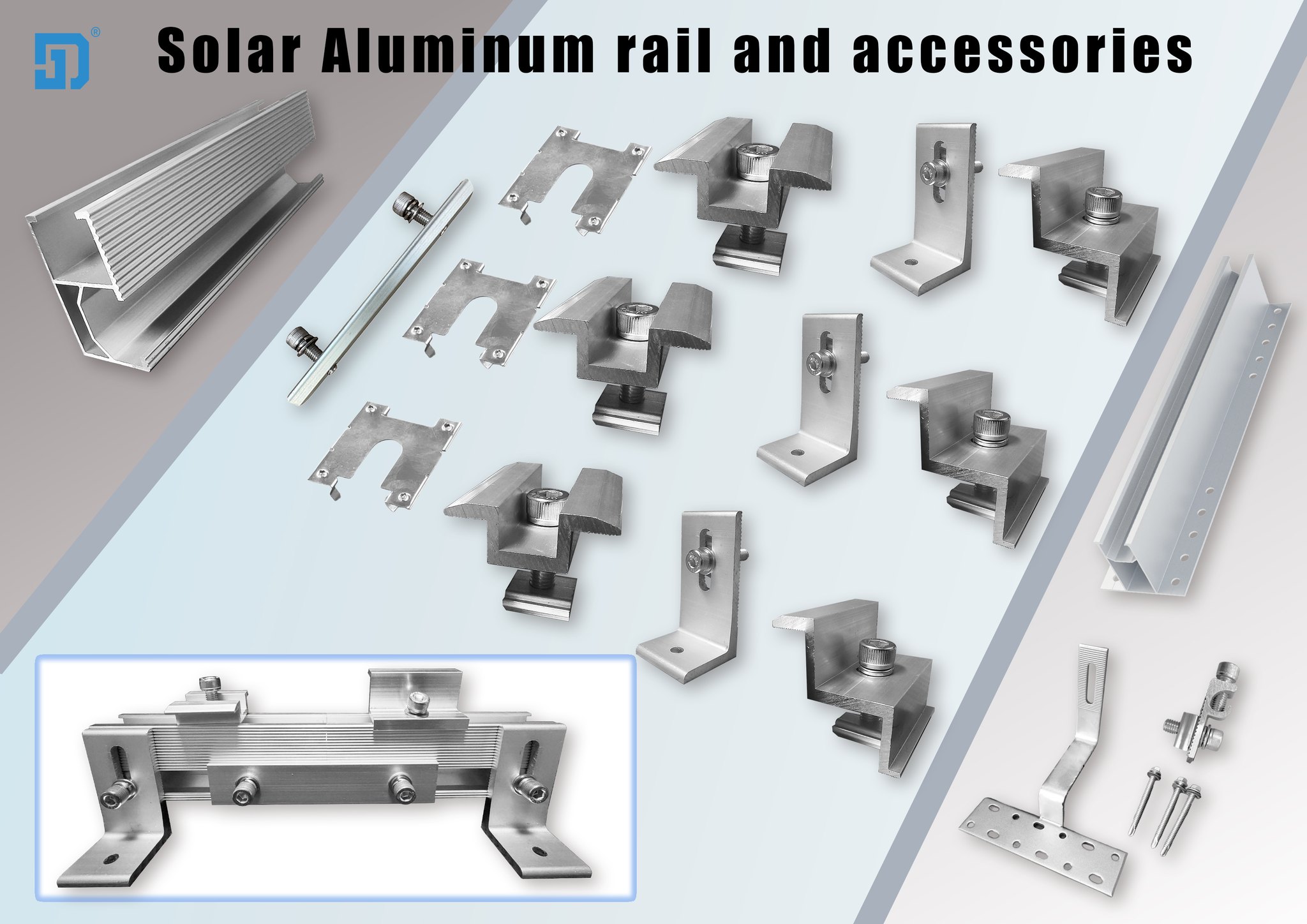

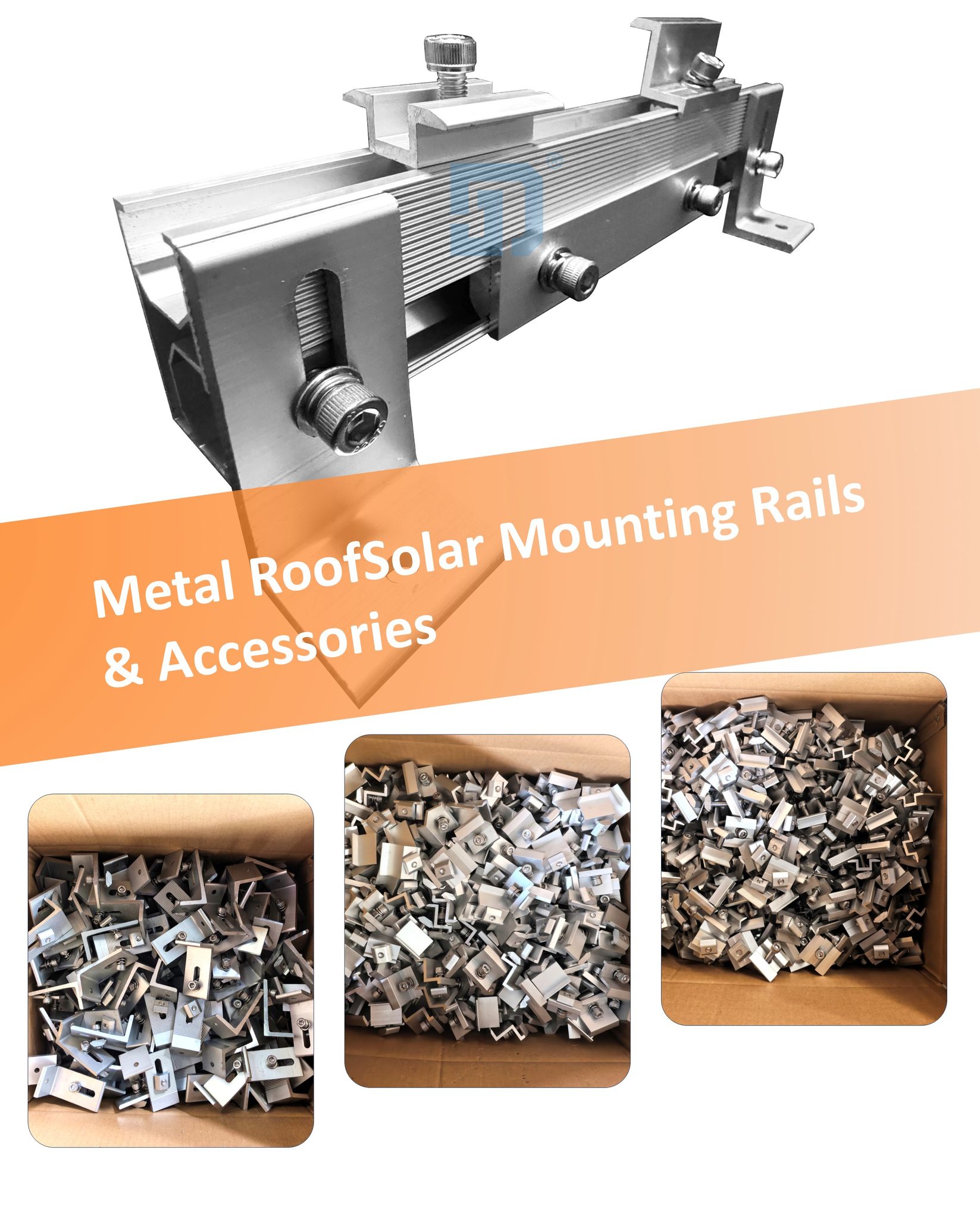

Key Features for Rooftop Use: Lightweight (reduces roof load), non-destructive installation (uses tile hooks or clamp-on design to avoid drilling through roof tiles, preventing water leaks), and a sleek, low-profile design that blends with the building’s aesthetics. The brackets are compatible with all common roof types, including tile roofs, metal roofs, and flat roofs. For example, our tile-specific fixed-tilt brackets slide under roof tiles to anchor directly to rafters, ensuring stability without damaging the roof structure. For flat commercial rooftops, we offer adjustable height brackets to optimize tilt angle and avoid water pooling.

Why Choose This Type: Perfect for projects with limited space and budget, requiring easy installation and long-term reliability. No complex adjustments—install once and enjoy 25+ years of stable performance.

🔧 Type 2: Aluminum Alloy Adjustable-Tilt Brackets

Ideal Application Scenarios: Commercial Rooftops, Ground Projects in High-Latitude Regions

For projects where seasonal sunlight angle changes significantly (such as high-latitude regions) or where energy generation needs to be maximized year-round, Jinda Solar’s adjustable-tilt aluminum brackets are the ideal choice. These brackets allow you to adjust the tilt angle of solar panels manually or semi-automatically, adapting to the sun’s path in different seasons (e.g., steeper tilt in winter to capture low-angle sunlight, shallower tilt in summer to avoid overheating).

Key Features for Adjustable Use: Made of high-strength 6063-T5 aluminum alloy, with a sturdy adjustment mechanism that can be locked in place after adjustment, ensuring stability even in strong winds. The brackets are suitable for both commercial rooftops (large factories, warehouses) and ground projects, especially in regions with distinct seasons (e.g., Northern Europe, North America, Northern China). They can be adjusted 2-4 times a year to optimize energy generation, increasing overall system output by 10-15% compared to fixed-tilt brackets.

Why Choose This Type: Ideal for projects focused on maximizing energy generation efficiency, especially in areas with large seasonal variations in sunlight. The adjustable design ensures you get the most out of your solar panels year-round.

🔧 Type 3: Aluminum Alloy Ground-Mount Fixed Brackets

Ideal Application Scenarios: Utility-Scale Ground PV Farms, Agricultural PV (Agri-PV) Projects

Jinda Solar’s ground-mount fixed aluminum brackets are engineered for large-scale projects, designed to withstand heavy loads, harsh weather, and diverse terrain. These brackets are the backbone of utility-scale solar farms (MW-level to GW-level) and agri-PV projects, where stability, durability, and scalability are critical.

Key Features for Ground Use: Heavy-duty aluminum alloy frames with reinforced joints, compatible with both spiral ground screws and concrete foundations (depending on soil conditions). The brackets can be designed with different spans and heights to adapt to flat land, sloping land, sandy soil, or rocky terrain. For agri-PV projects, we offer elevated ground-mount brackets (2-3 meters high) that allow crops to grow under the solar panels, realizing “land dual-use” (power generation + planting). The brackets are treated with zinc-aluminum-magnesium coating for superior corrosion resistance, suitable for long-term outdoor use in various environments.

Why Choose This Type: Perfect for large-scale projects that require high stability, easy scalability, and compatibility with diverse terrain. The elevated design for agri-PV projects maximizes land utilization and brings additional agricultural income.

🔧 Type 4: Aluminum Alloy Tracking Brackets (Single-Axis/Dual-Axis)

Ideal Application Scenarios: High-Efficiency Ground PV Farms, Large Commercial Projects

For projects that demand the highest possible energy generation efficiency, Jinda Solar’s aluminum alloy tracking brackets are the top choice. These brackets automatically track the sun’s movement throughout the day (single-axis tracks east-west, dual-axis tracks both east-west and north-south), ensuring solar panels are always perpendicular to sunlight, maximizing energy absorption.

Key Features for Tracking Use: Lightweight yet rigid aluminum alloy structure, paired with a high-precision tracking system (with wind speed sensors to automatically stow the panels in strong winds, preventing damage). The brackets are suitable for large-scale ground PV farms, industrial parks, and commercial projects where energy generation efficiency is a top priority. Compared to fixed-tilt brackets, tracking brackets can increase energy generation by 20-30%, making them ideal for regions with abundant sunlight (e.g., deserts, tropical areas).

Why Choose This Type: Perfect for projects with high energy generation goals and sufficient budget. The automatic tracking design eliminates manual adjustments and maximizes the return on investment (ROI) of the solar project.

🌟 Why All Jinda Solar Aluminum Alloy Brackets Stand Out

No matter which type of aluminum alloy bracket you choose, Jinda Solar ensures consistent quality and performance:

100% high-quality 6063-T5 aluminum alloy, lightweight yet strong
Advanced surface treatment (anodizing, zinc-aluminum-magnesium coating) for 25+ years of corrosion resistance
Compliance with international standards (IEC 61215, AS/NZS 1170) for wind, snow, and seismic loads
Customizable design to fit your specific project needs
Factory-direct supply, professional technical support, and one-stop after-sales service

🤝 Find Your Perfect Bracket with Jinda Solar

Every solar project is unique, and choosing the right aluminum alloy bracket is key to its success. Whether you’re building a small residential rooftop system, a large ground solar farm, or an agri-PV project, Jinda Solar has the perfect mounting solution for you.
